Custom CNC Machined Clear Acrylic Square Housing Transparent Plastic Flow Sensor Block
Custom CNC Machined Clear Acrylic Square Housing Block
Quick Details
| Item |
Specification |
| Material |
Clear Acrylic (PMMA) |
| Processing Method |
CNC Milling |
| Custom Service |
OEM & ODM, Customized per drawings or samples |
| Surface Finish |
Transparent machined finish, polished optional |
| Lead Time |
7‑15 working days |
Product Description

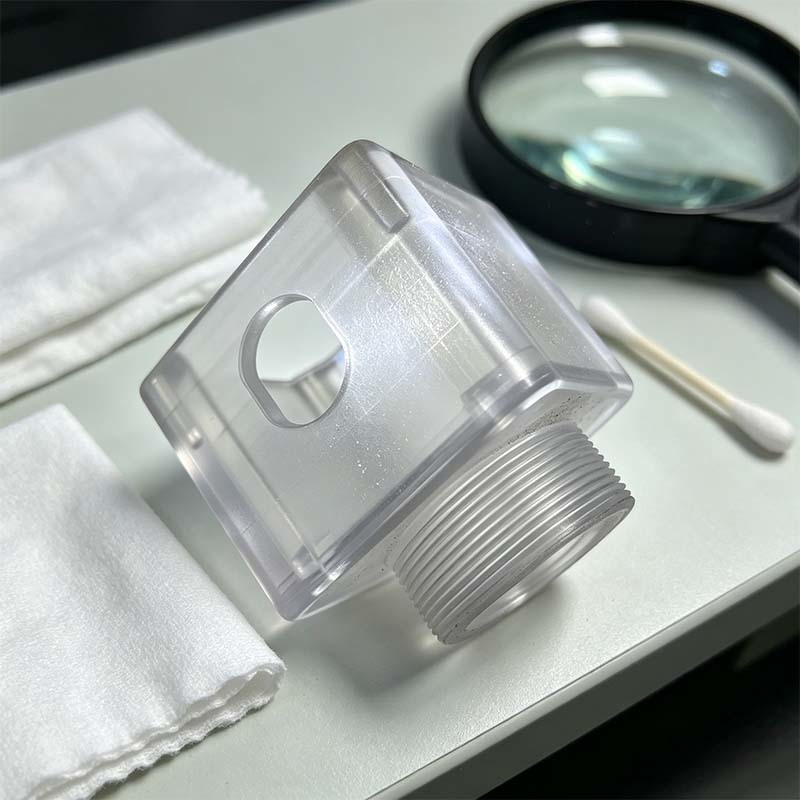

This custom CNC‑machined clear acrylic square housing block is engineered for industrial automation, fluid monitoring, sensor installation and visual‑inspection applications.
Many transparent plastic components suffer from poor hole concentricity, rough thread edges or internal defects after machining. Our precision CNC milling process solves these points, delivering clean‑cut threaded ports and accurately positioned side‑mount holes.

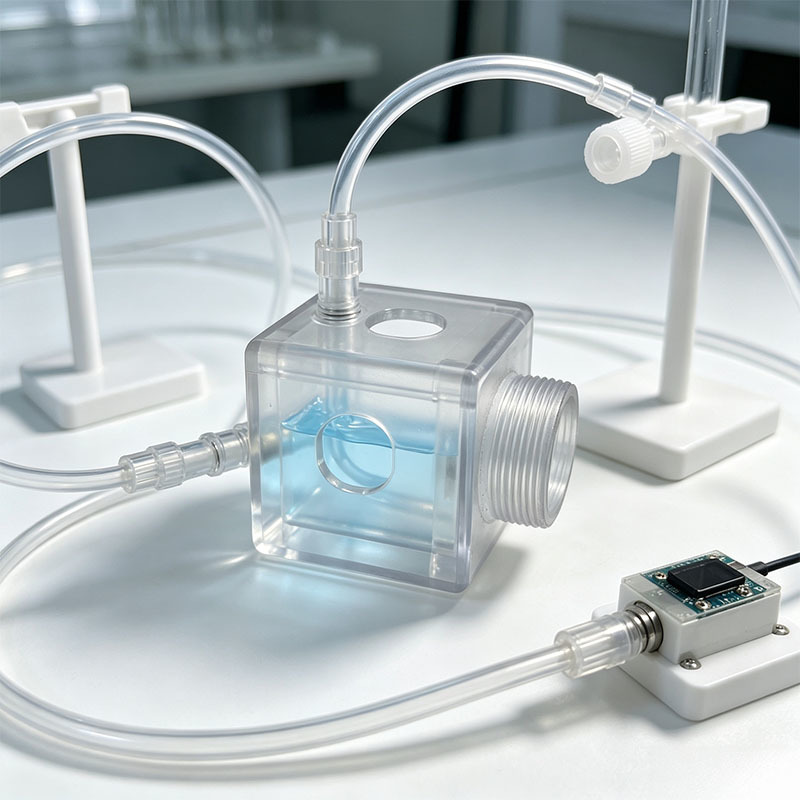

The fully‑transparent acrylic body allows you to observe internal liquid flow, component movement or working status without opening the housing. It features good chemical resistance, high light transmittance and stable mechanical performance for long‑term indoor equipment operation.
Product Advantages
- High‑transparency acrylic material, clear visual observation of internal working condition
- Precision CNC milled external thread and side holes, tight tolerance & excellent fitting performance
- Customizable size, hole layout and thread specification according to your technical requirements
- Smooth machined edges, no burrs, reduces assembly‑time re‑work
- Good corrosion‑resistance against most non‑aggressive fluids, suitable for fluid‑sensor projects
If you need to customize this transparent acrylic housing or have other plastic‑machining projects, please send us your 2D/3D drawings or sample photos. Our engineering team will offer you a competitive quotation quickly.
Our Service
| Processing |
CNC Turning, CNC Milling, Laser Cutting, Bending, Spining, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding, 3D Printing, Rapid Prototype, Moulds etc. |
| Materials |
Aluminum: 2000 series, 6000 series, 7075, 5052, etc.
Stainless steel: SUS303, SUS304, SS316, SS316L, 17-4PH, etc.
Steel: 1214L/1215/1045/4140/SCM440/40CrMo, etc.
Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, Bronze, Copper
Titanium: Grade F1-F5
Plastic: Acetal/POM/PA/Nylon/PC/PMMA/PVC/PU/Acrylic/ABS/PTFE/PEEK etc. |
| Surface Treatment |
Anodized, Bead Blasted, Silk Screen, PVD Plating, Zinc/Nickl/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc. |
| Tolerance |
±0.01 - ±0.005mm |
| Surface Roughness |
Min Ra 0.1-3.2 |
Quality Assurance
Every acrylic part is inspected dimensionally before packing. We check thread accuracy, hole position and surface quality one‑by‑one. Defective‑rate control is strictly implemented during production. Full inspection reports can be provided upon request for large orders.

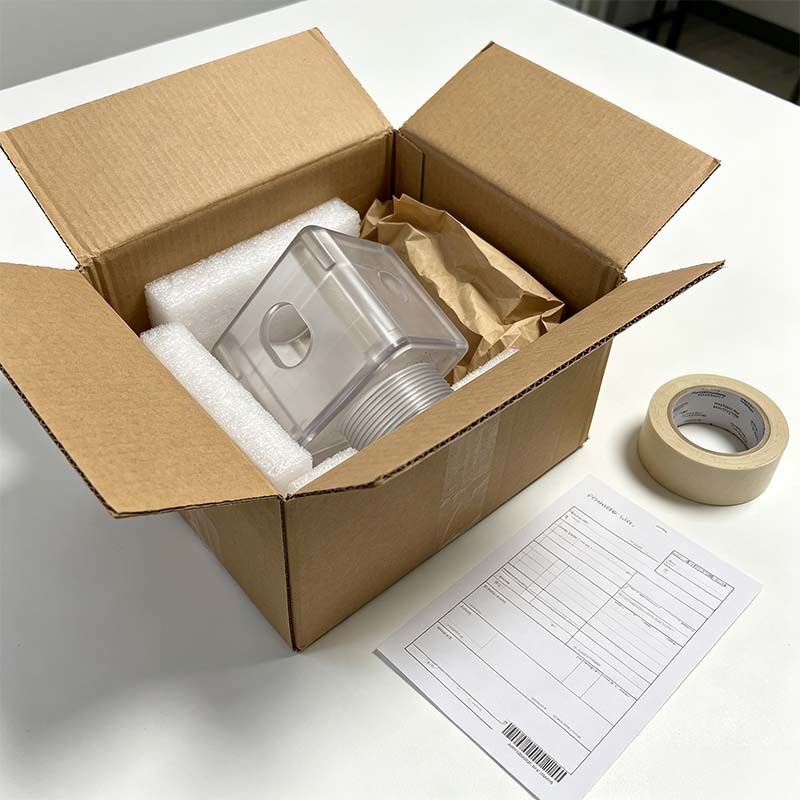

Packing
Every CNC‑machined part is carefully protected before shipment.
We wrap each workpiece with anti‑scratch protective film, then place it into shock‑resistant foam padding to avoid surface scratches, collision damage and dust contamination during transit.
All items are packed in sturdy corrugated cardboard boxes. Custom‑made inner foam is available for complex‑shaped precision components. A packing list with product specifications will be included inside the package for your inspection.
Delivery
We support flexible shipping solutions according to your requirements.
Small‑batch orders can be delivered by international express including DHL, FedEx, UPS and TNT for fast door‑to‑door service.
For large‑volume goods, we provide sea freight or air freight options.
Lead‑time depends on your drawing complexity and order quantity. We will send you tracking information once goods are dispatched, so you can monitor your shipment status in real‑time.
If you have your own freight forwarder, we are glad to deliver goods to your designated warehouse.

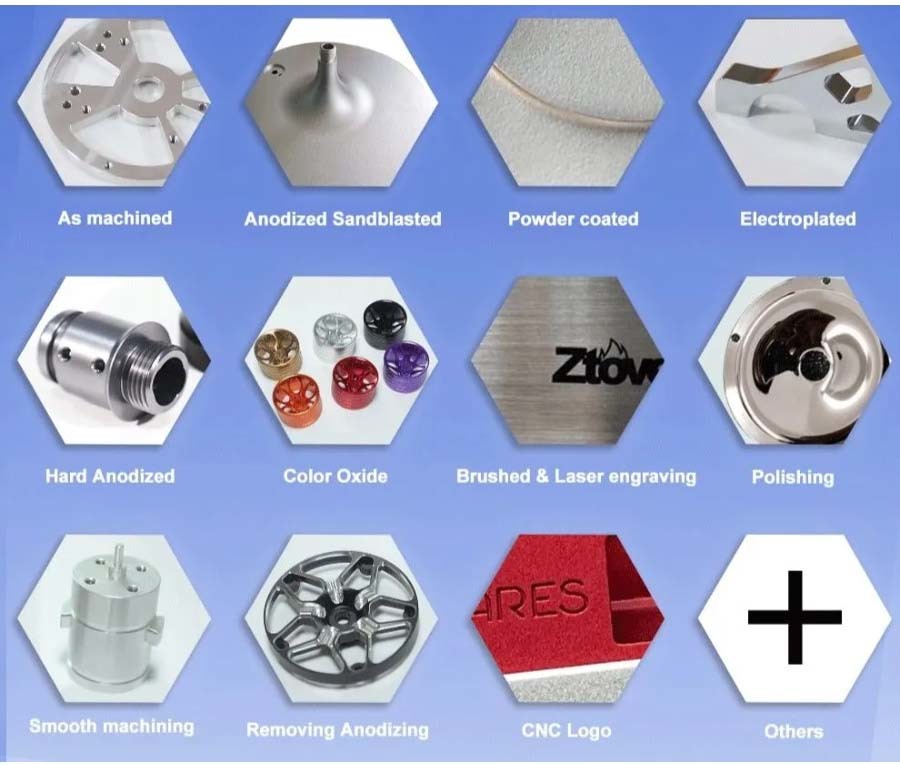

CNC Machined Parts Surface Treatment
(1) Physical surface treatment: sandblasting, wire drawing, shot blasting, polishing, rolling, polishing, brushing, spraying, painting, powder spraying, silk screen printing, pad printing, water transfer printing, electrophoresis, etc.
(2) Chemical surface treatment: bluish blackening, phosphating, pickling, electroless plating, TD treatment, QPQ treatment, carburizing, nitriding, chemical oxidation, passivation, etc.
(3) Electrochemical surface treatment: anodic oxidation, hard anodic oxidation, electrolytic polishing, electroplating, etc.
(4) Modern surface treatment: chemical vapor deposition CVD, physical vapor deposition PVD, ion implantation, ion plating, laser surface treatment, etc.
Order Process
FAQ
Q1: Can you modify the thread size or hole position on this acrylic block?
A1: Yes, this part is fully custom‑made. We can adjust thread specifications, hole layout and outer dimensions according to your drawings.
Q2: Will the transparent acrylic get scratches easily?
A2: Acrylic is relatively scratch‑prone. We can provide anti‑scratch surface treatment if you require higher wear‑resistance.
Q3: What other transparent plastic materials can you machine?
A3: We also provide CNC machining for Polycarbonate (PC), which delivers higher impact‑resistance than acrylic.
